- Market / location
- China — Qingyuan installation; customer identity withheld
- Product / substrate
- Multi-lane preprinted label web on a roll-to-roll transport
- Verified result
- Production video confirms a four-head roll-web configuration, multiple active print positions, UV curing and rewinding. Specific throughput and inspection grade were not provided.
Direct answer
A four-head UV inkjet system is useful when a label converter needs separated variable-print zones across a wider web or several lanes. The supplied Qingyuan footage shows a complete roll-to-roll installation with four print modules, web handling and curing, providing direct evidence of the physical integration rather than only a product rendering.
Documented application evidence
The video follows the machine from the printing area to the moving web and rewind section. Multiple repeated graphics are visible on the roll, and the four-head arrangement is documented by the installation record. The customer name is intentionally removed from the public narrative.
The evidence supports multi-lane production capability but not a universal maximum speed. Web width, ink coverage, code size, curing energy and camera workload all influence the approved operating window.
Application overview
| Line type | Roll-to-roll label printing and rewinding |
|---|---|
| Print arrangement | Four independently positioned UV inkjet modules |

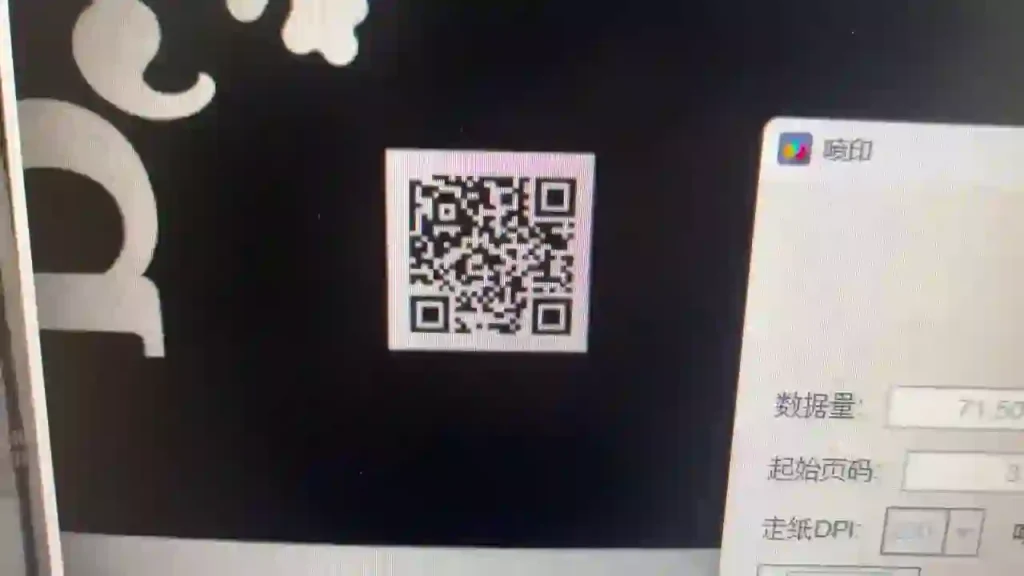

| Use cases | Unique QR codes, barcodes, serials and repeated variable fields |
| Web requirements | Stable tension, lateral guidance and registered repeat |
| Curing | Inline UV before rewind contact |
| Evidence | Production video; model and speed not inferred |
Customer requirement and production challenge
A wider multi-lane web cannot be treated as four unrelated narrow jobs. Lane spacing, image origin, web wander and data allocation are connected. If one lane shifts or one head pauses, the system needs a defined response that protects the relationship between records and physical labels.
The rewind stage introduces additional constraints. Recently printed labels can contact rollers or the next layer of the roll, so cure, surface temperature and rewind pressure must be validated under sustained production rather than a short hand-fed test.
Inkjetwell integration approach
Inkjetwell uses the final label layout to position each module. Registration signals identify the repeat, encoder feedback follows web movement, and the controller distributes variable records according to the lane map. Mechanical access is reserved for cleaning, alignment and head-height checks.
A multi-head job also benefits from a clear start-up routine: load the correct data file, verify one full repeat across all lanes, confirm UV status, and inspect both the first accepted section and the roll after a planned stop-and-restart.
Demonstrated outcome
The documented installation shows that four print zones can be coordinated on a production roll rather than demonstrated one at a time. This is particularly relevant to converters who need to add serialized or promotional data after conventional label printing.
The configuration remains modular. A buyer with different lane spacing may use another head count or print width; the case proves the integration approach, not a fixed bill of materials for every web.
What this case does not claim
No public speed, code grade or waste percentage is attached to the footage. These values should appear on the final acceptance report only after the buyer's material and data workflow are tested.
The article does not claim that one UV ink adheres to every paper, PET, PP or specialty label face stock. Each construction needs its own test and approved recipe.
Production validation checklist
- Provide usable web width, lane centers and variable-print areas.
- Specify material, topcoat, liner and downstream finishing.
- Define record allocation across all four zones.
- Measure lateral wander and tension through the full speed range.
- Test cure before rollers and tight rewinding.
- Approve restart, splice, waste and inspection behavior.
Common buyer questions
Does four heads mean four label lanes?
Not necessarily. A head may serve one lane, several narrow lanes or part of a wider image. The artwork and spacing determine the mapping.
Can all lanes print different QR codes?
Yes when the controller assigns separate records to each lane and the web registration remains synchronized.
Can the line be expanded later?
Expansion may be possible if the frame, controller, data bandwidth, curing and mechanical space were designed with that option in mind.
How is web wander controlled?
The base rewinder provides tension and lateral guidance. The inkjet integration is aligned to that controlled path and verified across a full production roll.
