Product introduction
Short description

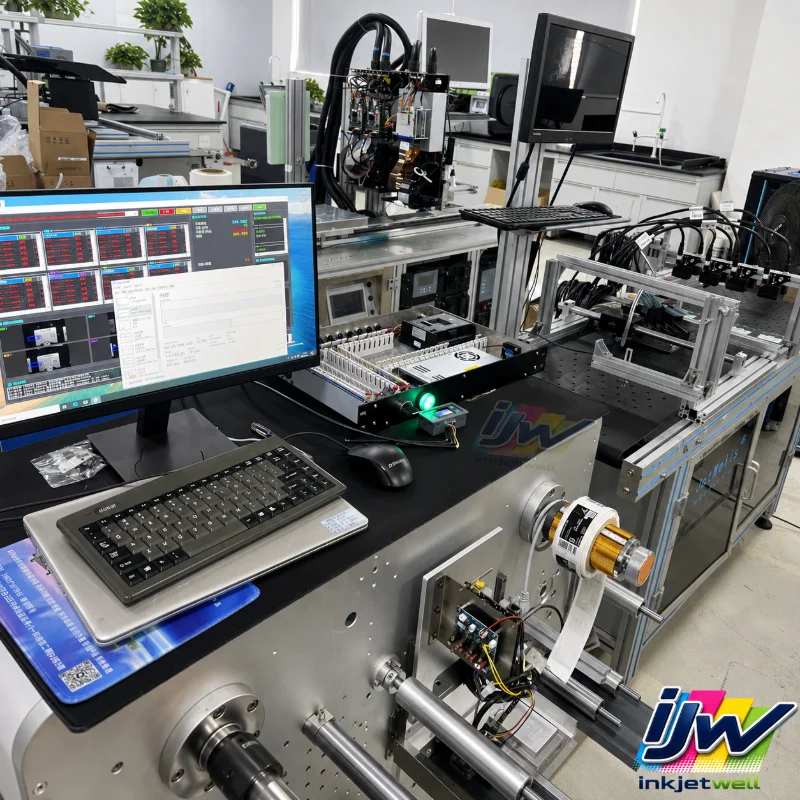

The IJW8000 is a large-area, high-resolution UV inkjet platform using a Kyocera industrial printhead. Each printhead provides a nominal print width of 108 mm at 600 dpi. Configurations from 1 to 24 printheads support detailed variable data, wide stitched graphics, repeated layouts, and large multi-lane production systems.
Product overview
The IJW8000 provides the widest nominal single-head print coverage in the six-model Inkjetwell UV portfolio. Its combination of 108 mm per printhead and 600 dpi nominal resolution is intended for projects that require both a large print area and detailed output.
A single-head IJW8000 can cover larger labels, panels, cards, packaging zones, or variable graphics. Multi-head systems can extend the nominal combined span, print several lanes, or create customized production layouts. From 1 to 24 Kyocera printheads can be configured according to the required image, system architecture, ink arrangement, line speed, and investment plan.
The complete solution may combine printing, material transport, UV LED curing, database processing, sensing, encoding, inspection, and industrial control. Final performance must be confirmed through engineering review and sample testing.
Printhead configuration
- Printhead brand: Kyocera
- Nominal print width per printhead: 108 mm
- Nominal resolution: 600 dpi
- Configurable printheads: 1–24
- Nominal combined coverage: 108–2,592 mm before stitching overlap
- Configuration options: large single zone, stitched wide image, multiple lanes, repeated panels, or customized arrangement
Key features
- Kyocera industrial UV inkjet platform
- 108 mm nominal print width per printhead
- 600 dpi nominal resolution
- Largest single-head print coverage in the six base UV versions
- Expandable from 1 to 24 printheads
- Suitable for detailed codes, text, and graphics over a larger area
- Fixed and variable data within the same production workflow
- UV LED curing matched to the ink, coverage, and speed
- Supports wide-format, multi-lane, and project-specific integration
- Optional database, traceability, inspection, and rejection functions
Typical print content
- Detailed QR codes and DataMatrix codes
- Barcodes and serial numbers
- Fine text and product information
- Large variable graphics and logos
- Labels, panels, repeated images, and multi-column data
- Unique promotional, security, and traceability codes
- Database-driven production content
Suitable applications
- Packaging, labels, and flexible packaging
- Wide labels and large variable-data areas
- Cards, tickets, vouchers, and security printing
- Pharmaceutical and medical packaging
- Electronics, components, and industrial products
- Cosmetics and consumer-product packaging
- Building materials, boards, panels, and suitable sheets
- Multi-lane and large-format inline production
Materials
The IJW8000 may be evaluated for coated paper, synthetic paper, labels, suitable films, plastics, cards, foils, boards, panels, and other industrial materials. The selected UV ink, curing energy, material surface, ink coverage, flexibility, and resistance requirement must be tested together.
Integration and automation
The system can be integrated with web lines, sheet transport, conveyors, feeders, sensors, encoders, databases, image-processing software, UV LED curing, inspection cameras, and rejection devices. A 1–24-head IJW8000 project requires coordinated mechanical, electrical, software, data, and curing design.
Specification snapshot
| Item | IJW8000 specification |
|---|---|
| Printing technology | Piezoelectric drop-on-demand UV inkjet |
| Printhead | Kyocera industrial printhead |
| Nominal width per printhead | 108 mm |
| Nominal resolution | 600 dpi |
| Printhead quantity | 1–24, configurable |
| Nominal combined coverage | Up to 2,592 mm with 24 heads, before overlap |
| Ink process | UV-curable ink with matched UV LED curing |
| Print content | Fixed and variable text, codes, numbers, barcodes, and graphics |
| Operating format | Standalone or inline integration |
| Final performance | Confirm through engineering review and application testing |
Why choose the IJW8000
Choose the IJW8000 when the project requires the combination of 108 mm single-head coverage, 600 dpi nominal resolution, and expansion to a large multi-head platform. It is the strongest choice in this portfolio for high-resolution applications with large or wide print areas.
Call to action
Send Inkjetwell your artwork at actual size, total print width, substrate, production speed, and required number of lanes. We will propose the Kyocera printhead quantity, arrangement, ink, curing system, transport, and validation process.
Primary CTA: Request an IJW8000 Configuration
Secondary CTA: Send Artwork for Evaluation
