Product introduction
Short description

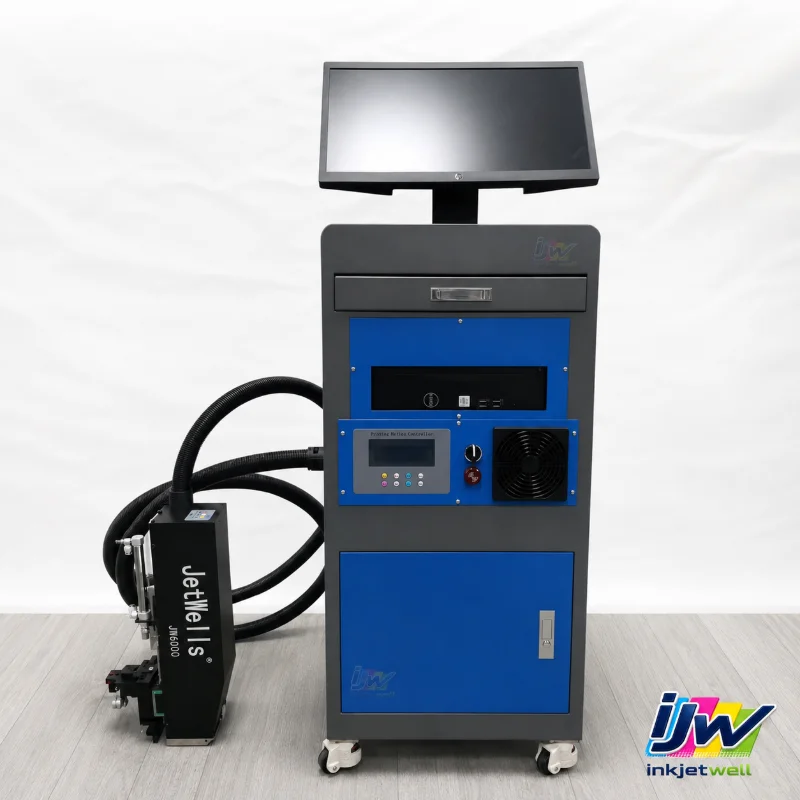

The IJW4000 is a compact UV inkjet system based on the Ricoh G4 industrial printhead. Each printhead provides a nominal print width of 32.4 mm at 300 dpi. The system can be configured with 1 to 24 printheads for narrow coding, stitched wider images, multiple print lanes, or other project-specific layouts.
Product overview
The IJW4000 is designed for manufacturers, printing companies, equipment suppliers, and integrators that need flexible UV variable-data printing in a compact format. It can print changing text, numbers, QR codes, DataMatrix codes, barcodes, serial numbers, batch information, logos, and graphics on validated materials.
The 32.4 mm single-head format is suitable for common coding areas and smaller variable images. When a wider image or several parallel printing positions are required, additional Ricoh G4 printheads can be integrated into the same platform. A project may use between 1 and 24 printheads, depending on the required width, product layout, line speed, ink configuration, and installation space.
UV-curable ink is cured immediately by a matched UV LED curing system. The final printer, ink, lamp, transport, and data configuration is selected after reviewing the customer’s material and production requirements.
Printhead configuration
- Printhead brand and series: Ricoh G4
- Nominal print width per printhead: 32.4 mm
- Nominal resolution: 300 dpi
- Configurable printheads: 1–24
- Nominal combined coverage: 32.4–777.6 mm before stitching overlap
- Configuration options: stitched wide image, independent print zones, parallel lanes, or project-specific arrangement
Key features
- Compact Ricoh G4 industrial UV inkjet platform
- 32.4 mm nominal print width per printhead
- 300 dpi nominal resolution
- Scalable architecture supporting 1 to 24 printheads
- Fixed and variable content in the same print job
- UV LED curing for immediate downstream handling when the process is correctly matched
- Suitable for standalone equipment and production-line integration
- Supports sensors, encoders, data software, and external control according to the project scope
- Print width and system layout can be expanded without creating a separate base product model
Typical print content

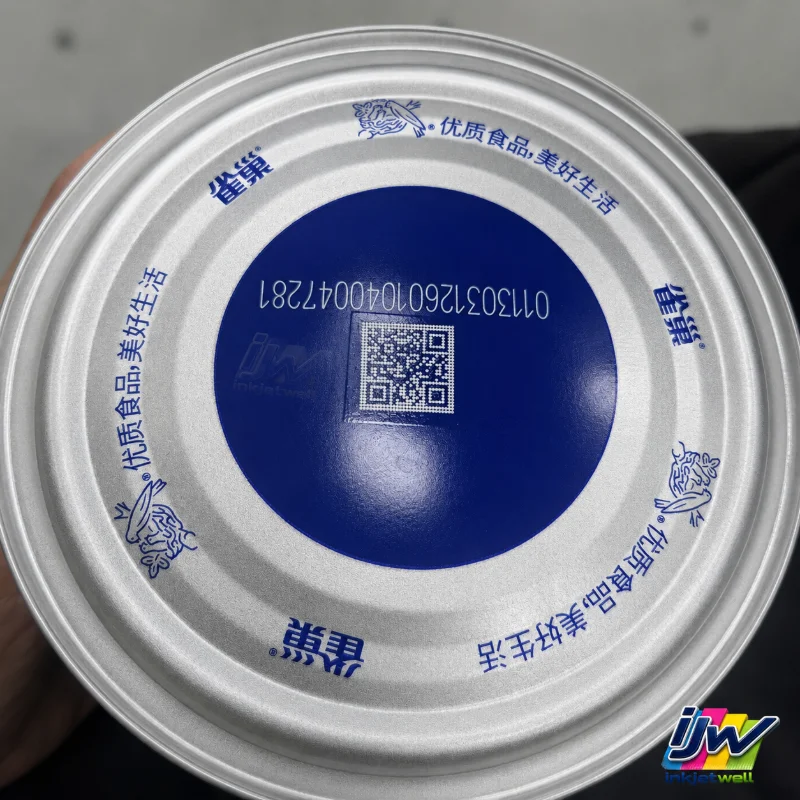

- QR codes and DataMatrix codes
- One-dimensional barcodes
- Serial numbers and unique identification codes
- Batch, lot, date, and production information
- Variable text and numbers

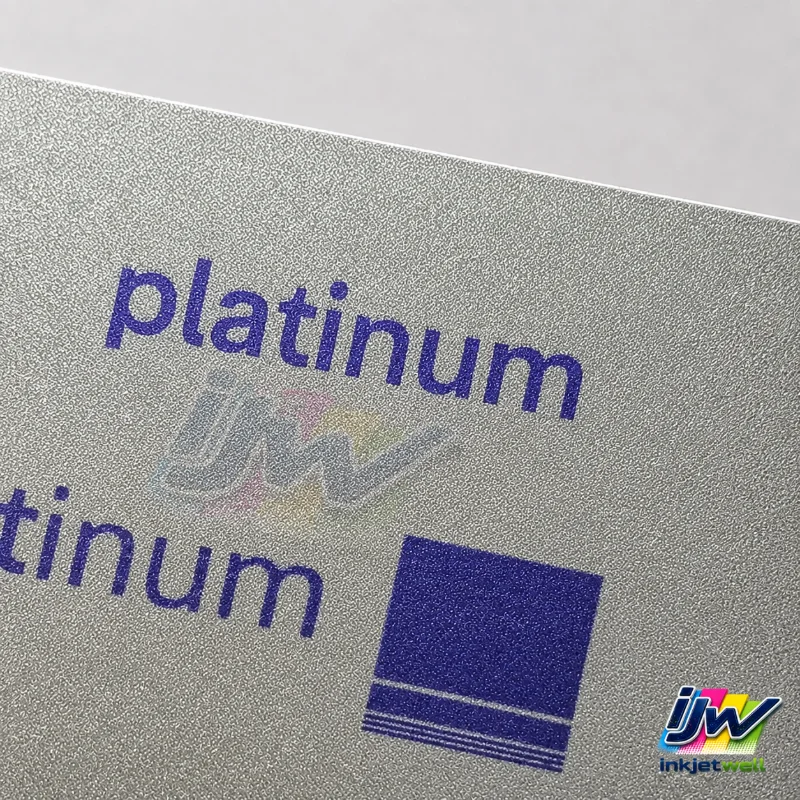

- Logos, symbols, and small graphics
- Database-driven and traceability data
Suitable applications
- Labels and coated labels

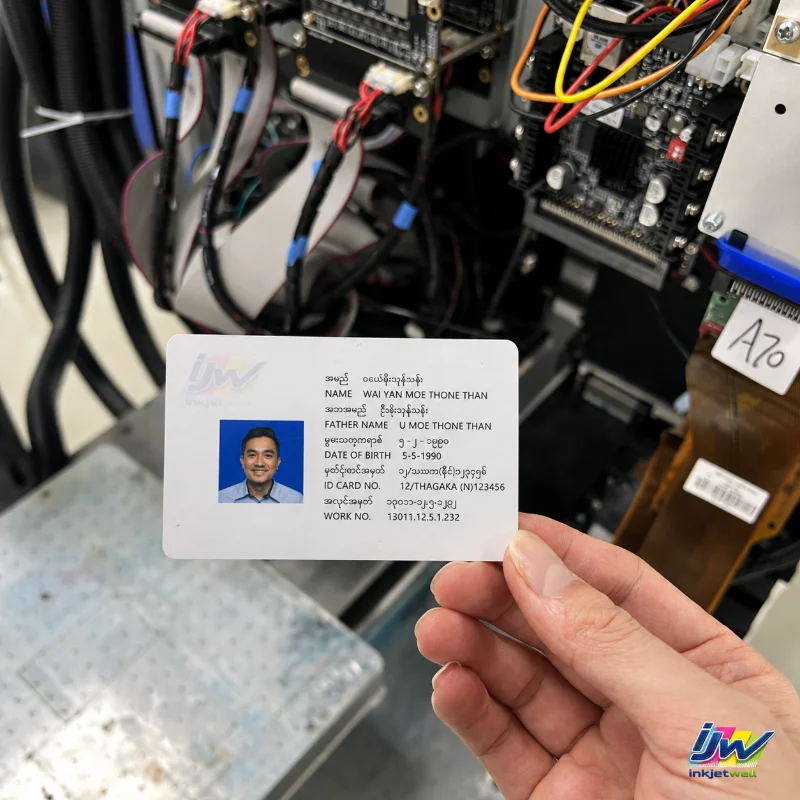

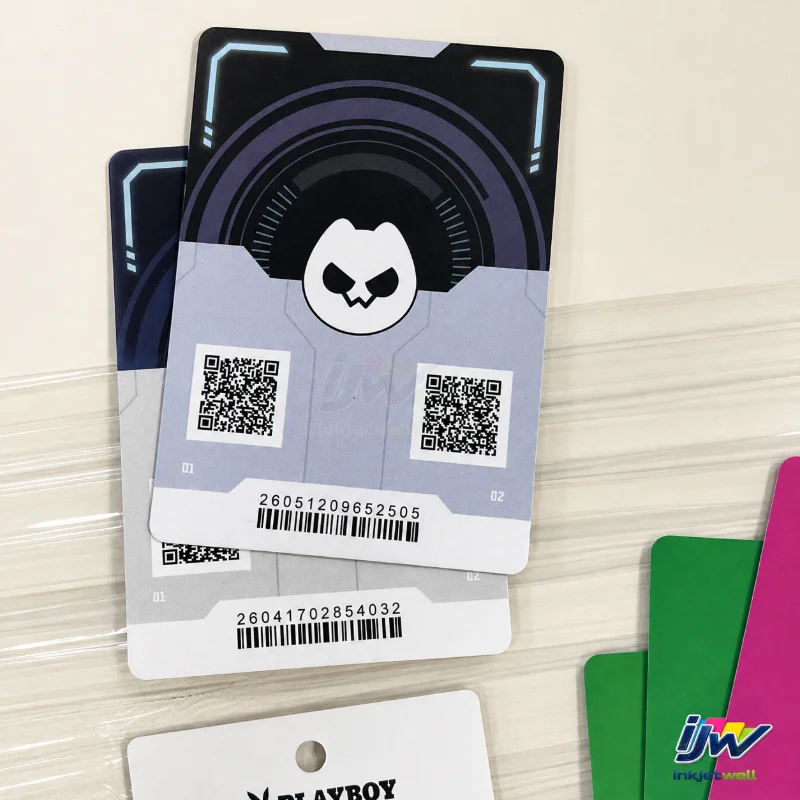

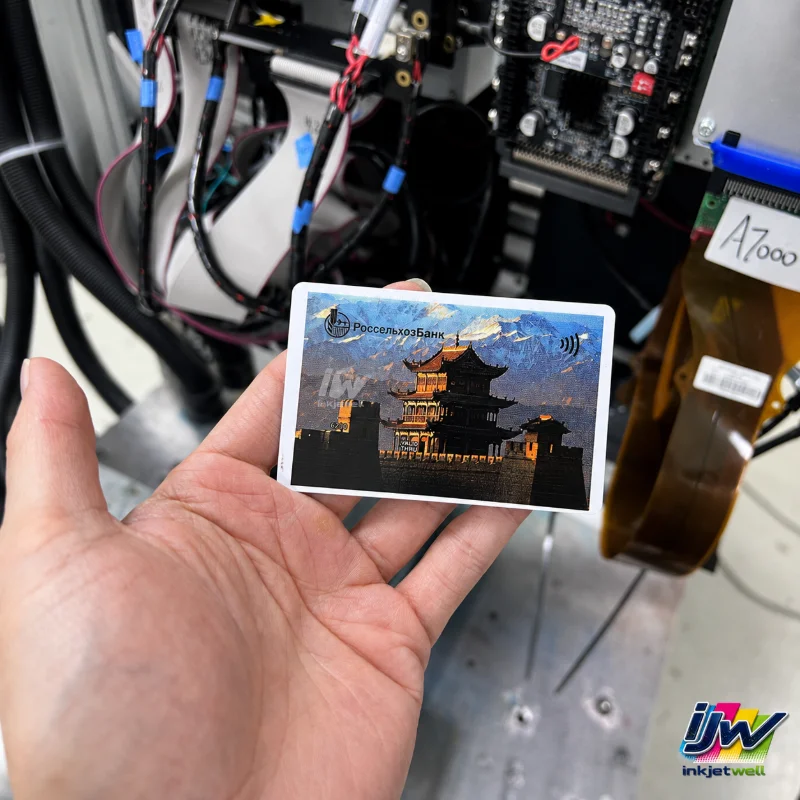

- Cards, tickets, vouchers, and tags
- Flexible packaging and suitable films
- Cartons, coated paper, and paperboard
- Pharmaceutical and medical packaging
- Electronics and industrial components
- Cosmetics and personal-care packaging
- Industrial products requiring variable identification
Materials
Typical projects may include coated paper, synthetic paper, suitable plastics, films, labels, cards, foils, and selected industrial surfaces. The exact UV ink and curing parameters must be confirmed through sample testing. Pre-treatment may be required for low-surface-energy or otherwise difficult materials.
Integration and automation

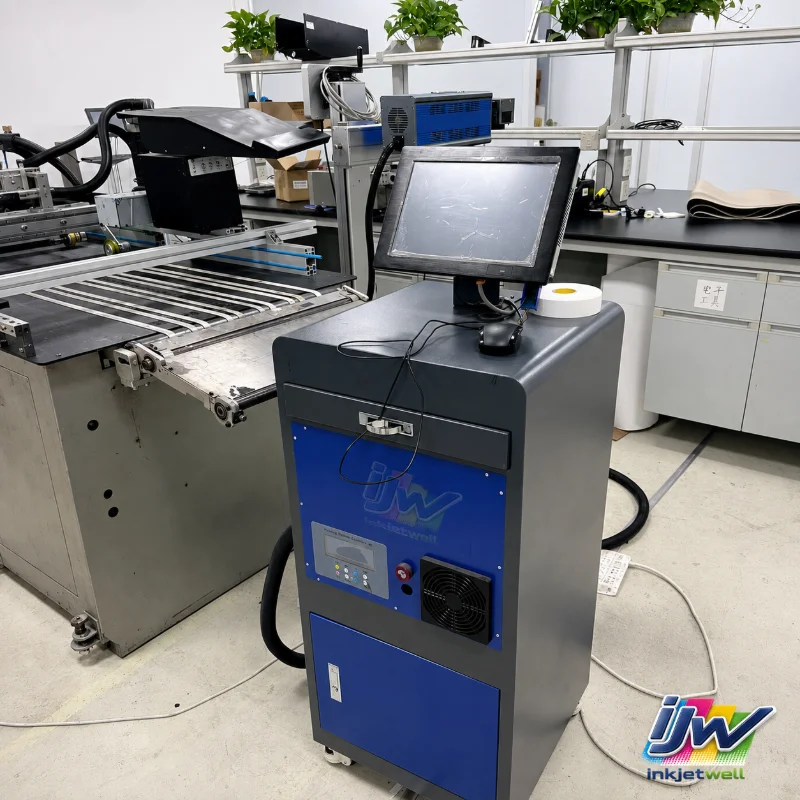

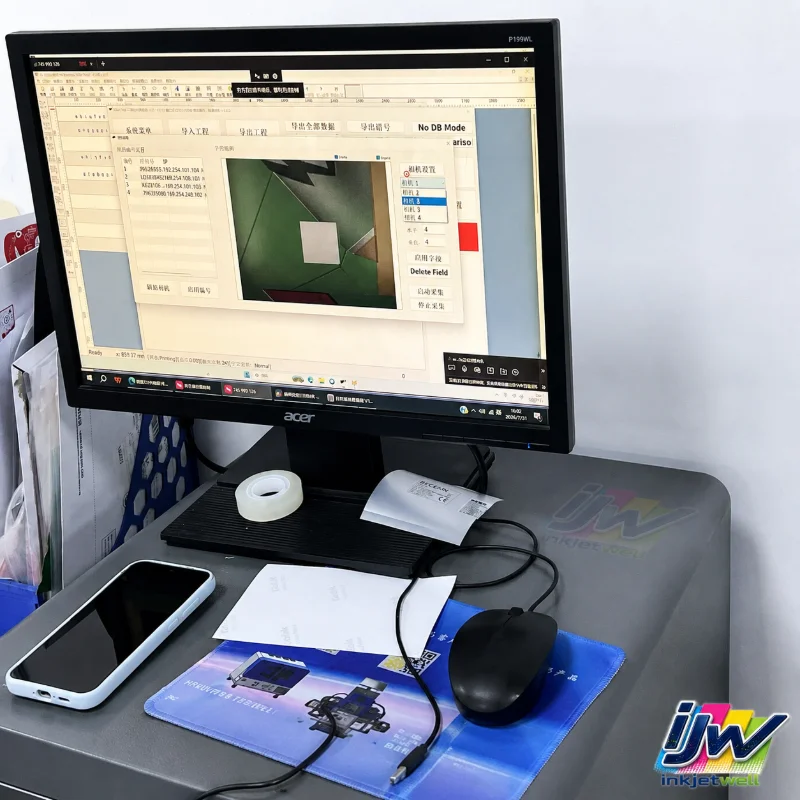

The IJW4000 can be integrated with conveyors, feeders, web-handling equipment, product sensors, encoders, UV LED curing units, databases, vision systems, and external production controls. Multi-head alignment, stitching, triggering, data assignment, and curing are engineered around the actual line.
Specification snapshot
| Item | IJW4000 specification |
|---|---|
| Printing technology | Piezoelectric drop-on-demand UV inkjet |
| Printhead | Ricoh G4 industrial printhead |
| Nominal width per printhead | 32.4 mm |
| Nominal resolution | 300 dpi |
| Printhead quantity | 1–24, configurable |
| Nominal combined coverage | Up to 777.6 mm with 24 heads, before overlap |
| Ink process | UV-curable ink with matched UV LED curing |
| Print content | Fixed and variable text, codes, numbers, barcodes, and graphics |
| Operating format | Standalone or inline integration |
| Final speed and ink | Confirm by configuration and application testing |
Why choose the IJW4000
Choose the IJW4000 when the application needs a compact UV platform, a 32.4 mm single-head print area, and the option to expand from one printhead to a larger multi-head configuration. It is a practical starting point for variable-data projects that require UV curing without beginning with a larger single-head platform.
Call to action
Send us your material, print content, required width, line speed, and sample image. Inkjetwell will recommend the printhead quantity, ink, UV curing system, and integration method for your application.
