Product introduction
Short description

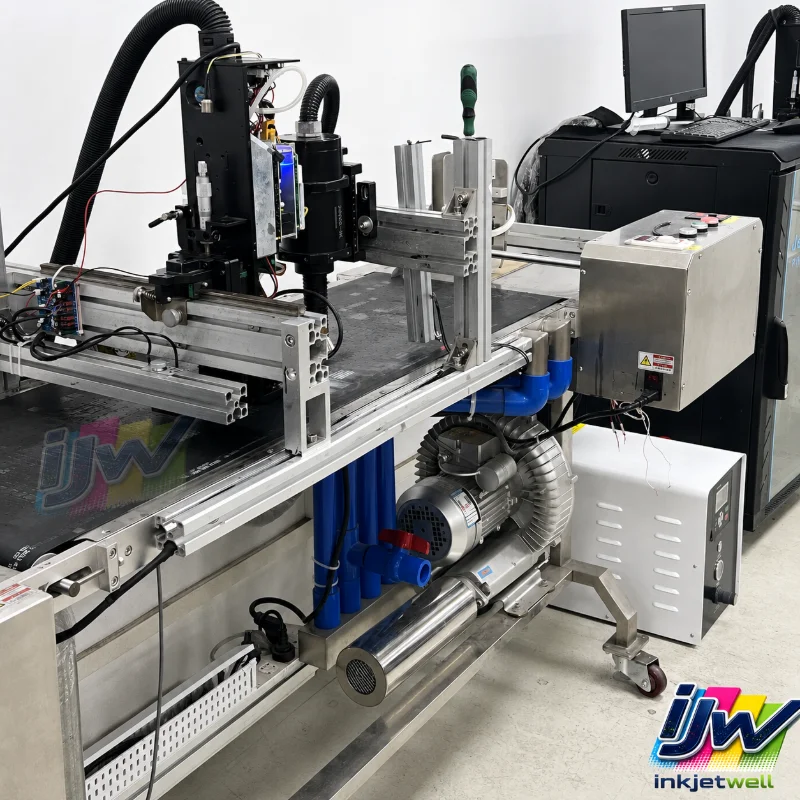

The IJW7000 uses the Seiko 1020 industrial printhead to provide a nominal print width of 71 mm at 360 dpi per head. Its 1–24 printhead architecture supports single-zone coding, wider stitched images, parallel lanes, and customized industrial printing systems.
Product overview
The IJW7000 is positioned between compact coding systems and large-area industrial printing platforms. A 71 mm single-head print width provides useful coverage for larger QR codes, multiple lines of text, barcodes, product identification, and variable graphics. Additional printheads can expand the print area or serve several print positions in one production process.
The Seiko 1020 platform is intended for industrial users that need a practical balance of print coverage and 360 dpi image definition. The system can process fixed and changing content, including serialized and database-generated data, and can be integrated with a matched UV LED curing process.
Every system is configured for the customer’s actual material, print layout, speed, transport method, data source, and inspection requirement.
Printhead configuration
- Printhead brand and series: Seiko 1020
- Nominal print width per printhead: 71 mm
- Nominal resolution: 360 dpi
- Configurable printheads: 1–24
- Nominal combined coverage: 71–1,704 mm before stitching overlap
- Configuration options: stitched wide image, independent zones, parallel lanes, or customized arrangement
Key features
- Seiko 1020 industrial printhead platform
- 71 mm nominal print width per head
- 360 dpi nominal resolution
- Modular configuration from 1 to 24 printheads
- Suitable for both fixed and variable information
- Wider single-head coverage than compact coding platforms
- UV LED curing for an integrated print-and-cure workflow
- Expandable for wide products, multiple lanes, and repeated layouts
- Supports automation and data integration according to the project scope
Typical print content

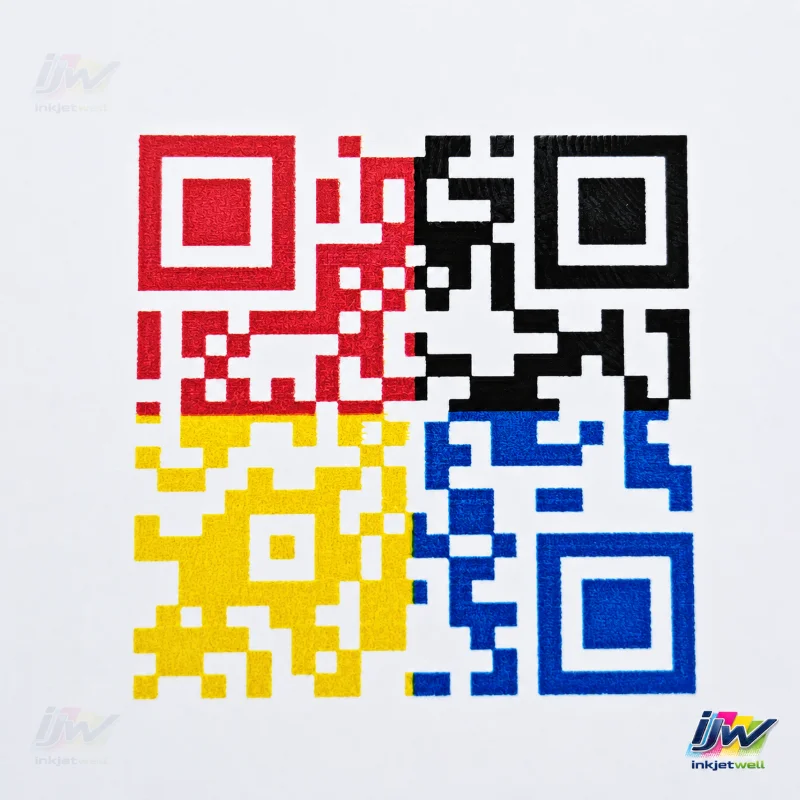

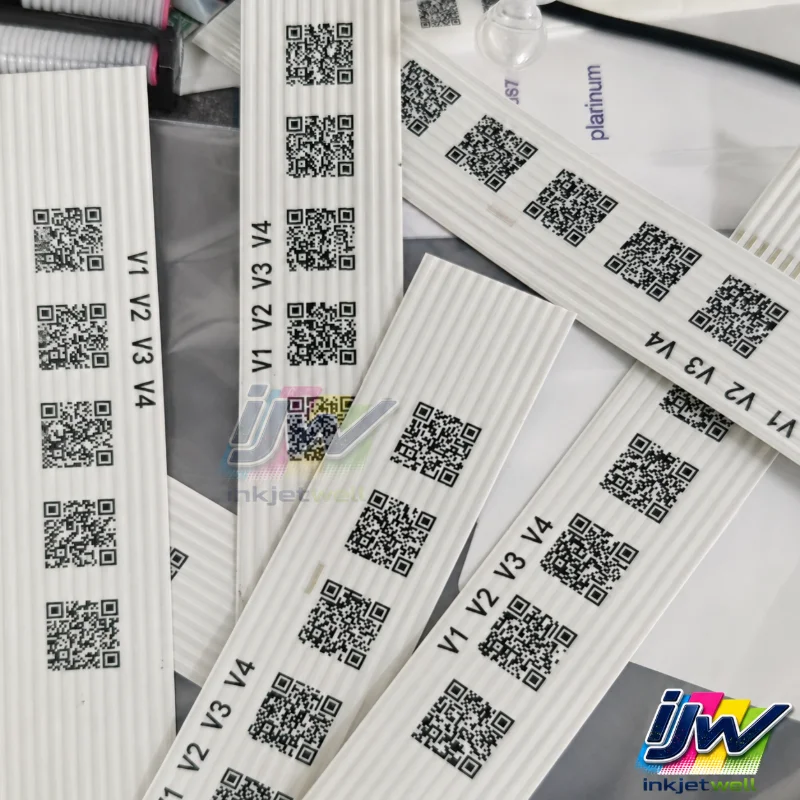

- QR codes and DataMatrix codes
- Barcodes and product-identification codes
- Production dates, batch numbers, and lot information
- Serial numbers and unique codes
- Multi-line text and symbols
- Variable graphics and logos
- Database-driven records
Suitable applications

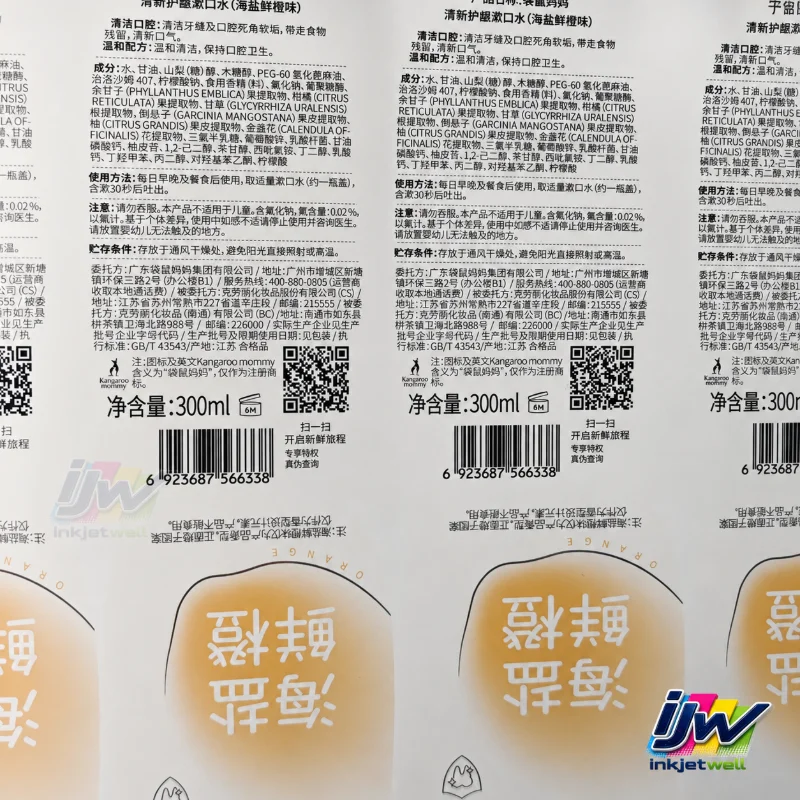

- Packaging, labels, and flexible packaging

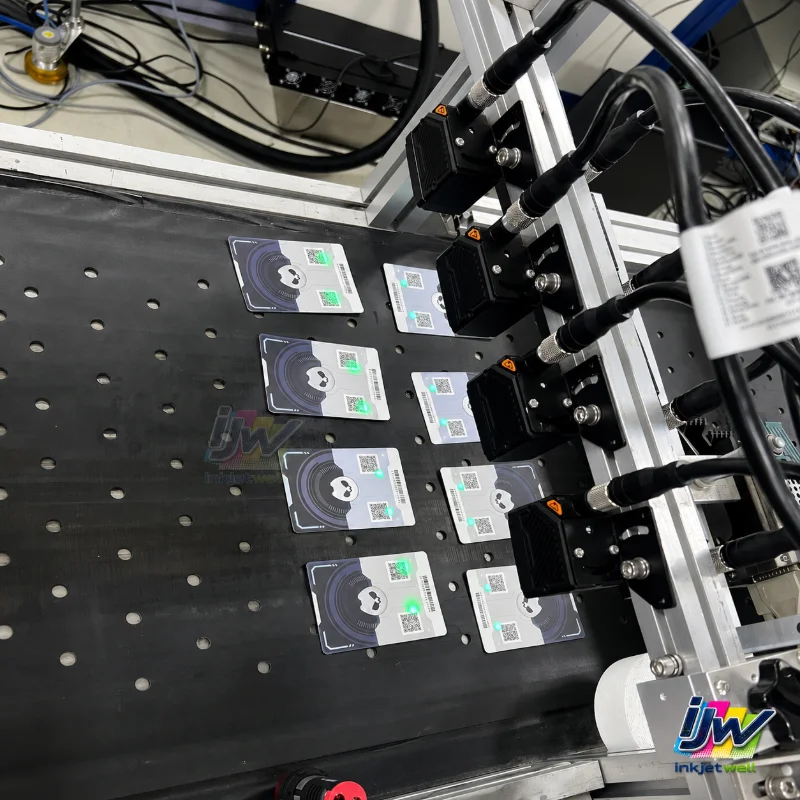

- Cards, tickets, vouchers, and tags

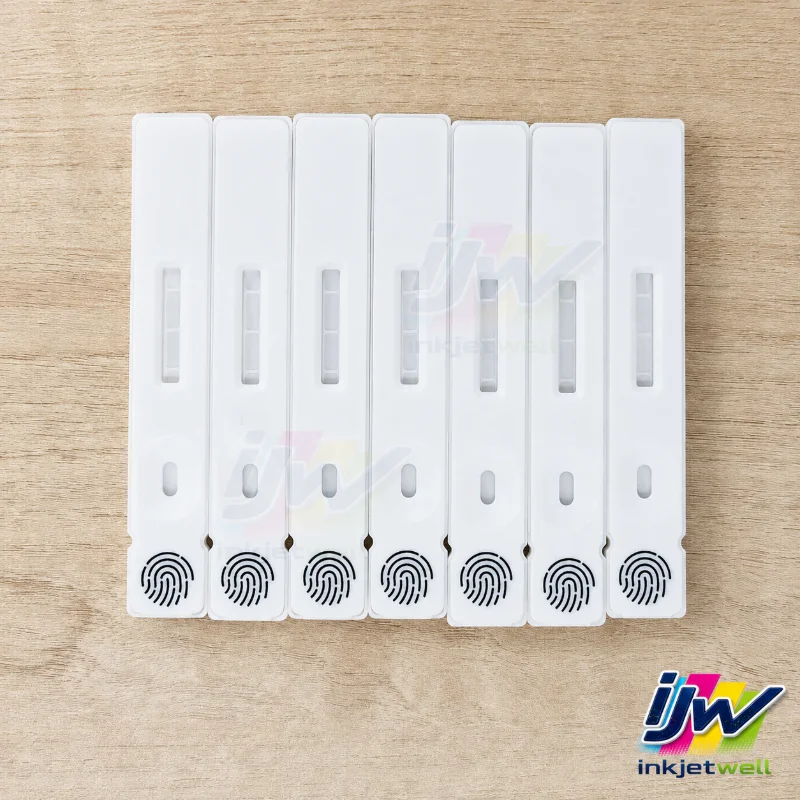

- Pharmaceutical and medical packaging
- Electronics and industrial components
- Building materials and industrial products
- Consumer goods and cosmetics packaging
- Wider or multi-lane production layouts
Materials

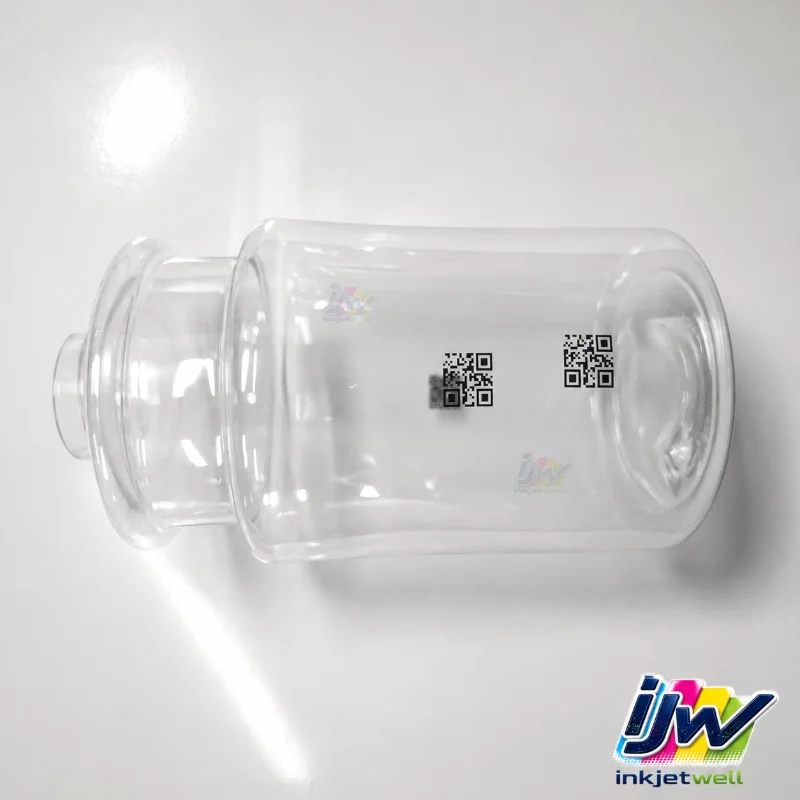

Potential substrates include coated paper, labels, suitable plastic films, rigid plastics, cards, foils, and selected industrial materials. Final suitability depends on the ink, surface condition, curing energy, production speed, and required resistance. Sample testing is required.
Integration and automation
The IJW7000 can be integrated with conveyors, feeders, web transport, sensors, encoders, UV LED curing systems, data software, inspection cameras, and external controls. Multi-head projects require mechanical alignment and synchronized triggering based on the actual production layout.
Specification snapshot
| Item | IJW7000 specification |
|---|---|
| Printing technology | Piezoelectric drop-on-demand UV inkjet |
| Printhead | Seiko 1020 industrial printhead |
| Nominal width per printhead | 71 mm |
| Nominal resolution | 360 dpi |
| Printhead quantity | 1–24, configurable |
| Nominal combined coverage | Up to 1,704 mm with 24 heads, before overlap |
| Ink process | UV-curable ink with matched UV LED curing |
| Print content | Fixed and variable codes, text, numbers, barcodes, and graphics |
| Operating format | Standalone or inline integration |
| Final performance | Confirm through configuration and sample testing |
Why choose the IJW7000
Choose the IJW7000 when the application benefits from 71 mm coverage per head and 360 dpi nominal resolution. It provides a flexible route from a single printhead to a wide or multi-lane system without changing the base printing platform.
Call to action
Provide your material, total print width, artwork, line speed, and number of lanes. Inkjetwell will calculate the printhead quantity and propose a complete IJW7000 printing, curing, and integration configuration.
Primary CTA: Request an IJW7000 Proposal
Secondary CTA: Arrange Sample Testing
