Product introduction
Short description
The IJW7100 is based on the Seiko 510 industrial printhead. Each printhead delivers a nominal 71 mm print width at 180 dpi. The system supports 1 to 24 printheads for larger text, codes, marks, graphics, repeated layouts, and wide industrial printing applications.
Product overview
The IJW7100 is designed for applications where print area and clear industrial identification are more important than very fine image detail. Its 71 mm single-head coverage can handle large characters, multi-line information, barcodes, QR codes of a suitable size, logos, symbols, and product marks when 180 dpi meets the readability and visual requirement.
The base version can use one printhead for a single print zone or multiple Seiko 510 printheads for stitched width, multiple lanes, repeated panels, or independent printing positions. Up to 24 printheads can be incorporated into a project-specific system.
Because code readability depends on final code size, substrate, movement, ink, and inspection conditions, every barcode or two-dimensional code application should be tested before the configuration is approved.
Printhead configuration
- Printhead brand and series: Seiko 510
- Nominal print width per printhead: 71 mm
- Nominal resolution: 180 dpi
- Configurable printheads: 1–24
- Nominal combined coverage: 71–1,704 mm before stitching overlap
- Configuration options: wide image, repeated zones, parallel lanes, or customized industrial layout
Key features
- Seiko 510 industrial UV inkjet platform
- 71 mm nominal print width per printhead
- 180 dpi nominal resolution
- Configurable from 1 to 24 printheads
- Suitable for larger text, codes, marks, and graphics
- Modular width expansion for wide products and multi-lane processes
- Fixed and variable printing capability
- Matched UV LED curing configuration
- Integration with transport, sensing, encoding, and external controls
Typical print content
- Large production dates and batch information
- Product names, grades, and specifications

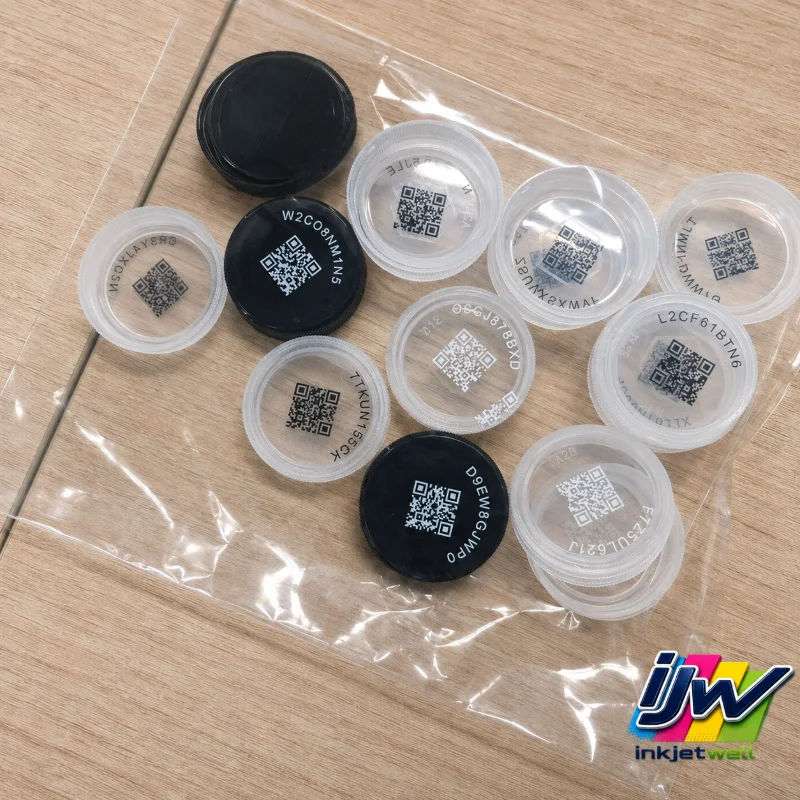

- Barcodes and suitable-size QR or DataMatrix codes
- Serial numbers and variable identification

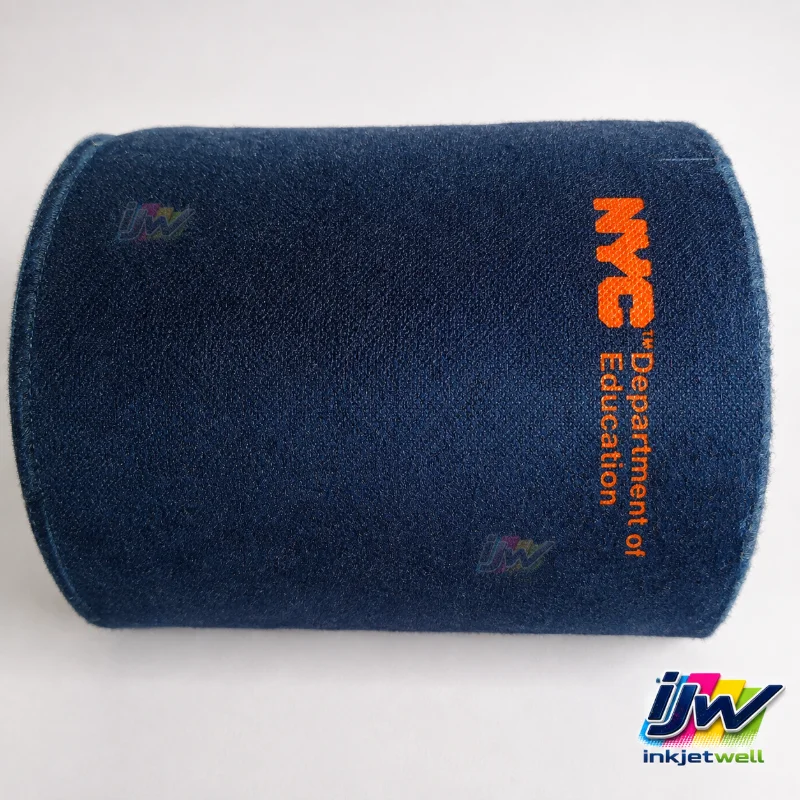

- Logos, symbols, handling marks, and graphics
- Repeated information across several lanes
- Database-driven text and numbers
Suitable applications
- Industrial products and building materials

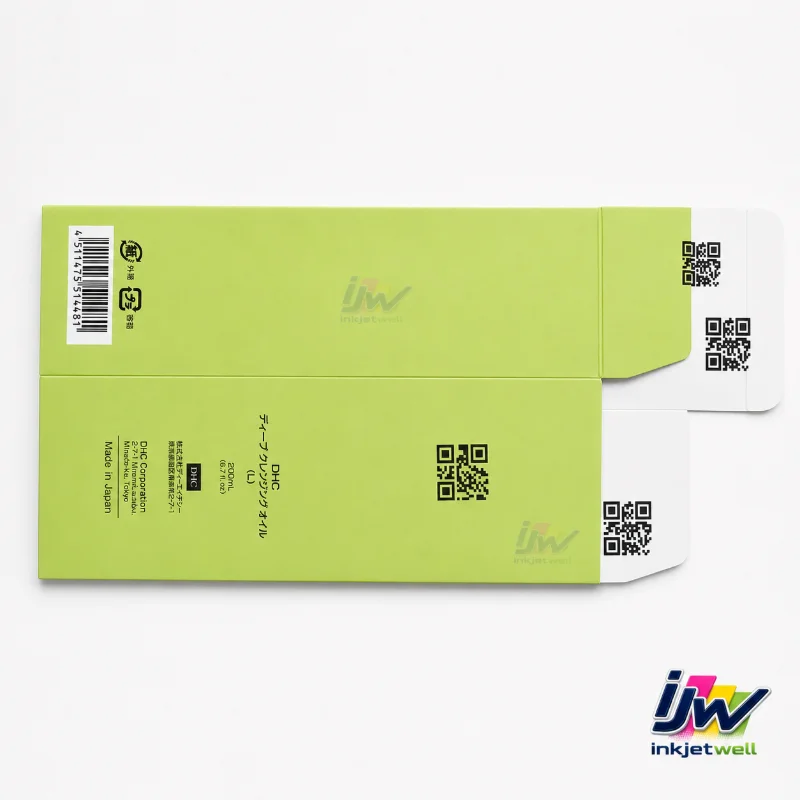

- Cartons, boards, panels, and suitable sheets
- Packaging and converting lines

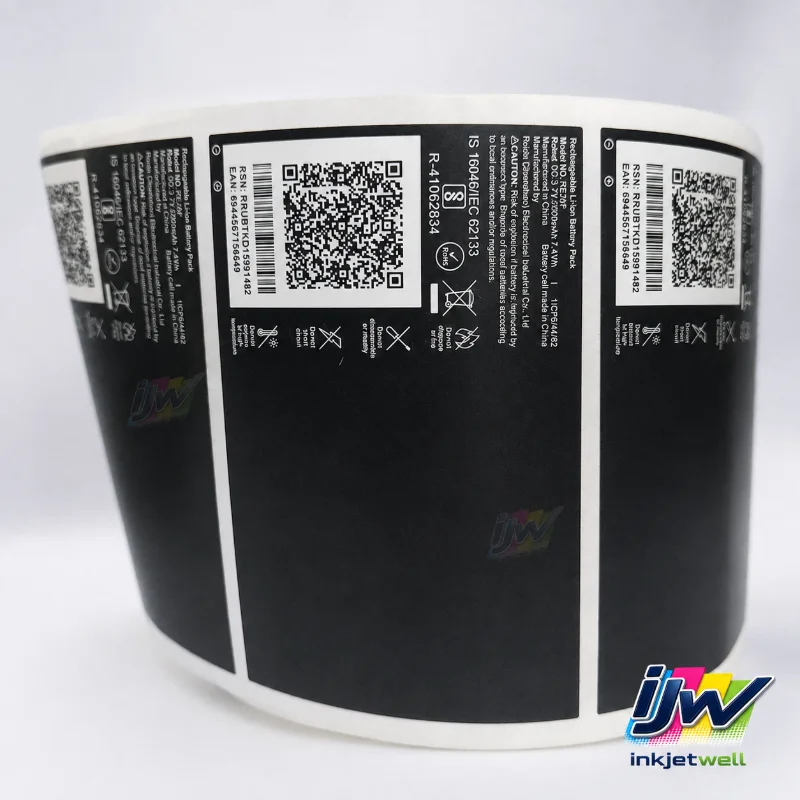

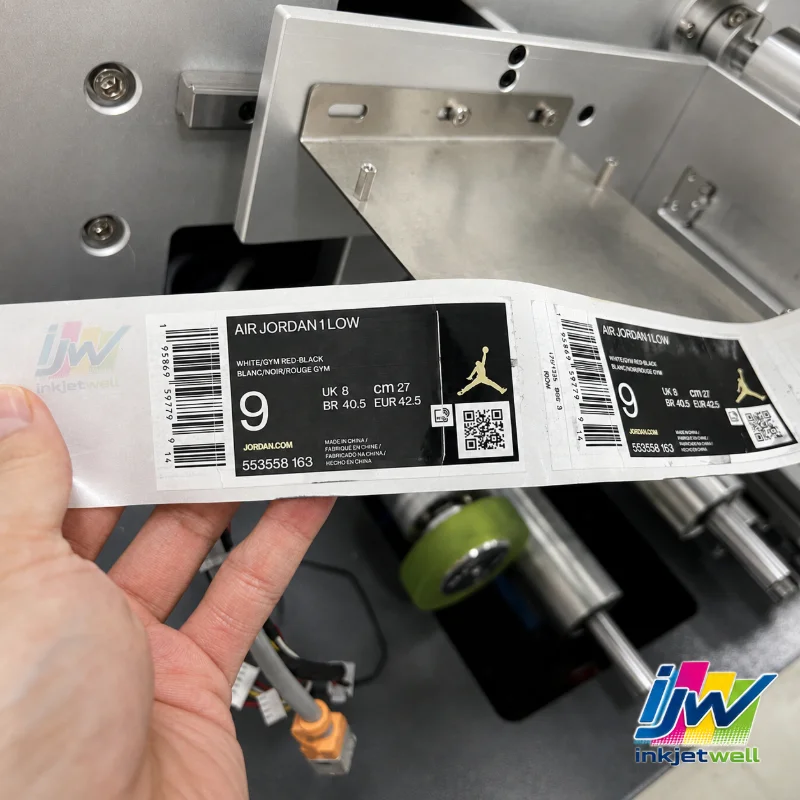

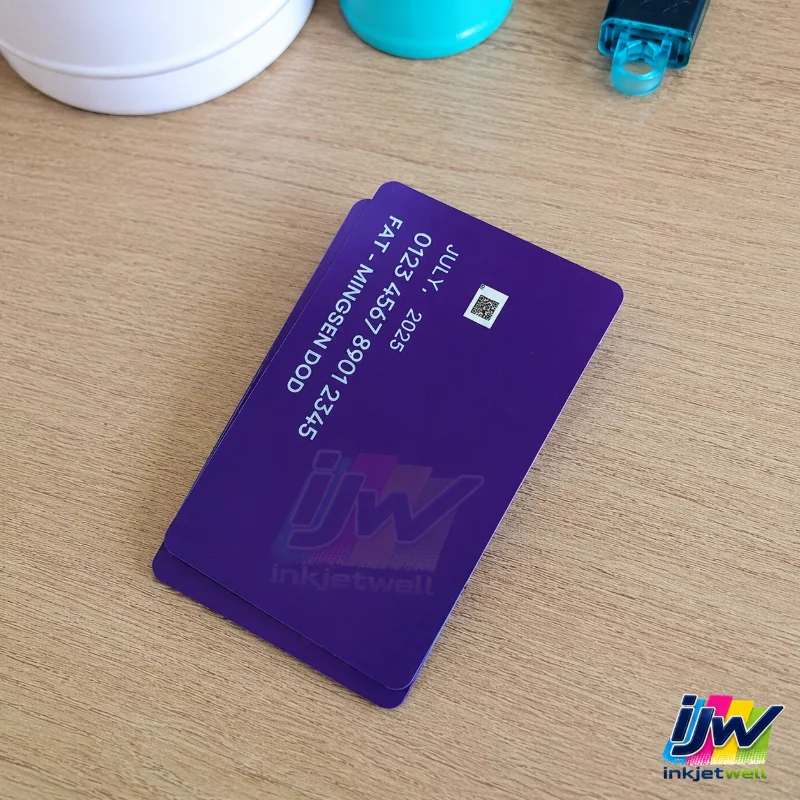

- Labels, tags, tickets, and cards
- Components and manufactured products
- Multi-lane or repeated-layout printing
- Applications where 180 dpi satisfies the confirmed output requirement
Materials
The system may be evaluated for coated paper, board, labels, selected films, plastics, cards, foils, panels, and other suitable industrial surfaces. Ink chemistry, surface energy, curing, resistance, and downstream processing must be validated with the actual material.
Integration and automation

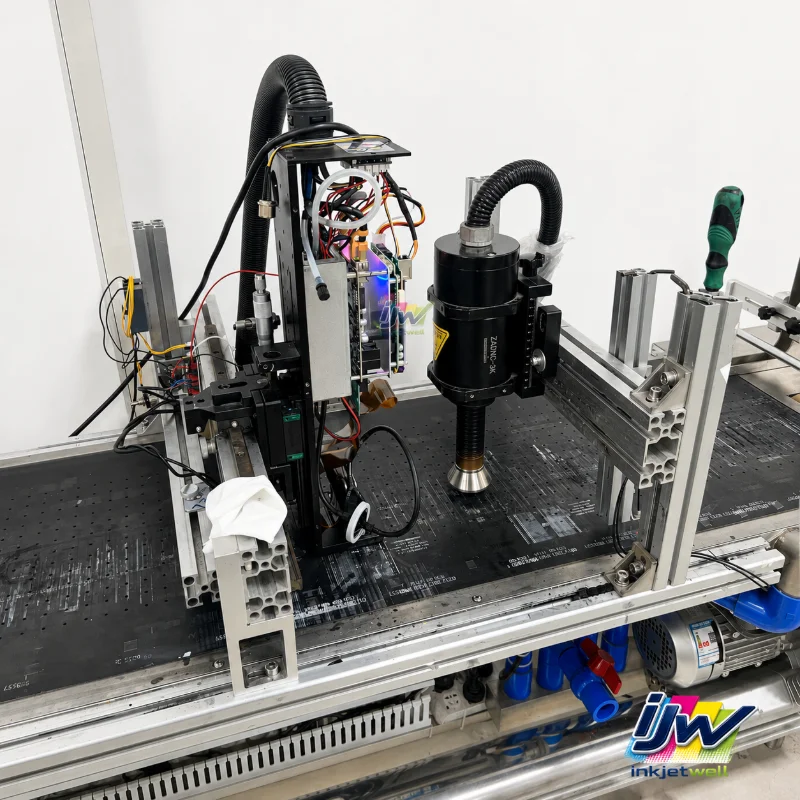

The IJW7100 can be integrated into conveyors, sheet transport, feeders, web lines, and customized machinery. Sensors, encoders, data software, UV LED curing, and inspection equipment can be included according to the project. Multi-head alignment and image stitching must be engineered for the required print layout.
Specification snapshot
| Item | IJW7100 specification |
|---|---|
| Printing technology | Piezoelectric drop-on-demand UV inkjet |
| Printhead | Seiko 510 industrial printhead |
| Nominal width per printhead | 71 mm |
| Nominal resolution | 180 dpi |
| Printhead quantity | 1–24, configurable |
| Nominal combined coverage | Up to 1,704 mm with 24 heads, before overlap |
| Ink process | UV-curable ink with matched UV LED curing |
| Print content | Fixed and variable codes, text, marks, numbers, and graphics |
| Operating format | Standalone or inline integration |
| Code readability and speed | Confirm by application testing |
Why choose the IJW7100
Choose the IJW7100 when the project requires 71 mm coverage per head, modular width expansion, and clear industrial printing at 180 dpi. It is particularly relevant where larger content and wider coverage take priority over fine-detail reproduction.
Call to action
Send the required artwork at actual size together with your material and production information. Inkjetwell will confirm whether 180 dpi meets the requirement and recommend the number and arrangement of Seiko 510 printheads.
