Product introduction
Short description
The multi-head TIJ system combines several thermal inkjet printheads under one control platform. It is configured for larger print areas, multiple products, or separate data zones that cannot be covered by a standard single- or dual-head printer.
Product overview
This system is intended for application-based projects rather than one fixed print width. Printhead count, spacing, orientation, ink type, and controller configuration are selected according to the required image and production arrangement.
The system can print dates, batch numbers, serial numbers, barcodes, QR codes, DataMatrix codes, graphics, and database records across a larger carton or across several lanes. Each head can print part of one larger design or an independent data field.
Key features
- Configurable multi-head TIJ architecture
- Larger print area or multiple independent print zones
- Variable text, dates, serial numbers, barcodes, QR codes, and DataMatrix
- Database-driven printing
- Product sensor and encoder synchronization
- Water-based, solvent-based, and specialty cartridges according to application
- Conveyor, packaging-machine, and multi-lane integration
- Network and serial communication options
- Optional external alarm and production control
- Project-based mechanical mounting and head protection
Typical print content
- Large multi-line carton information
- Several codes on one package
- Separate codes across multiple production lanes
- Barcode and human-readable data
- QR code plus batch and serial information
- Database records and variable graphics
Suitable applications

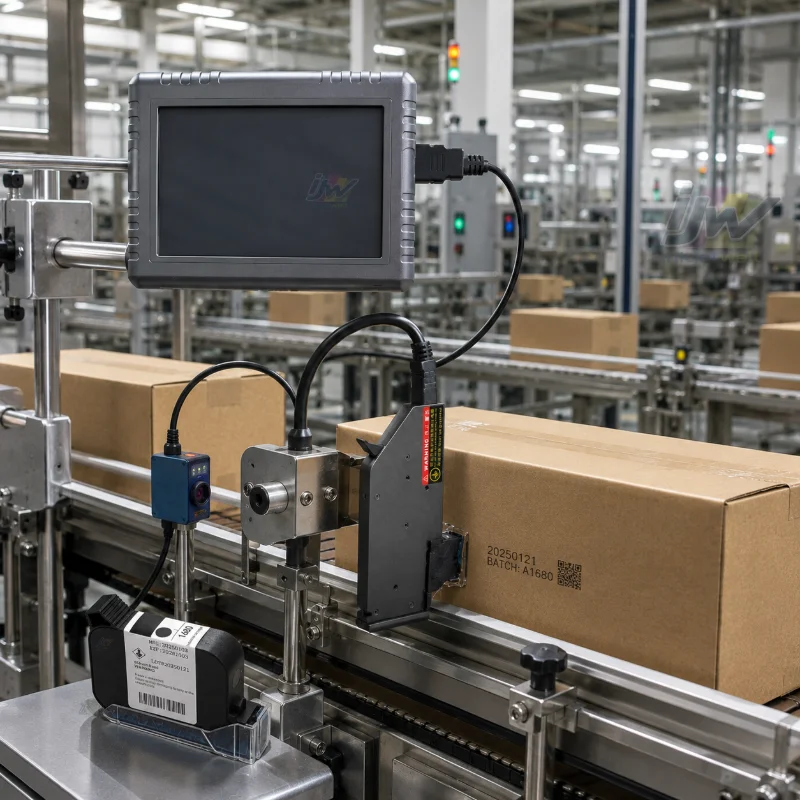

- Large cartons and outer cases
- Trays and secondary packaging
- Multi-lane packaging machines
- Several products printed in parallel
- Large logistics labels
- Industrial packaging with multiple data zones
Ink and material selection

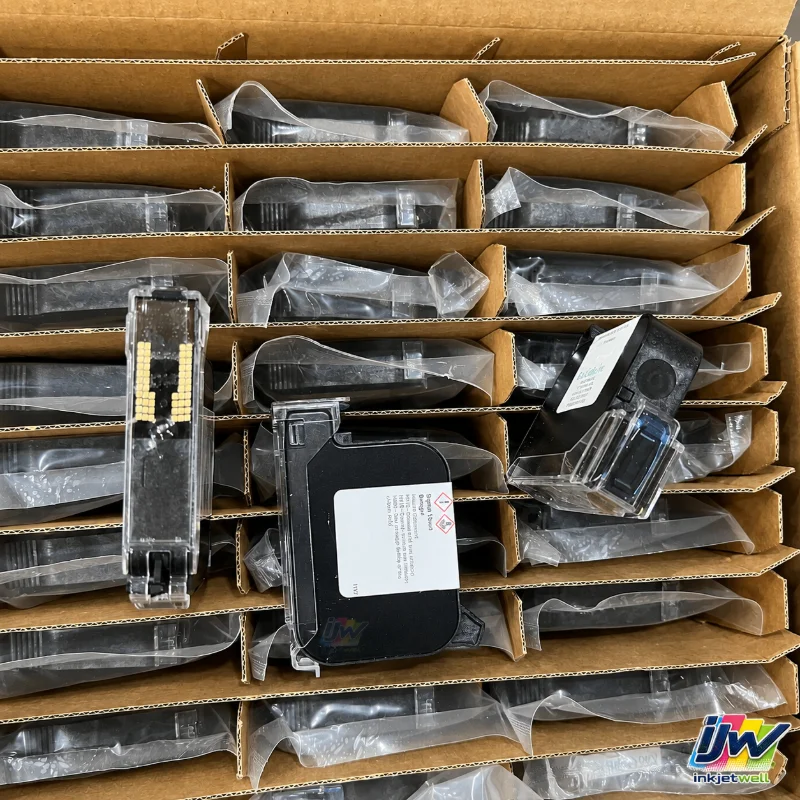

Each printhead can use an ink cartridge selected for the target material, but mixed ink configurations must be evaluated carefully. Cartridge chemistry, color, drying time, adhesion, and maintenance requirements must match the production process.
Integration and automation

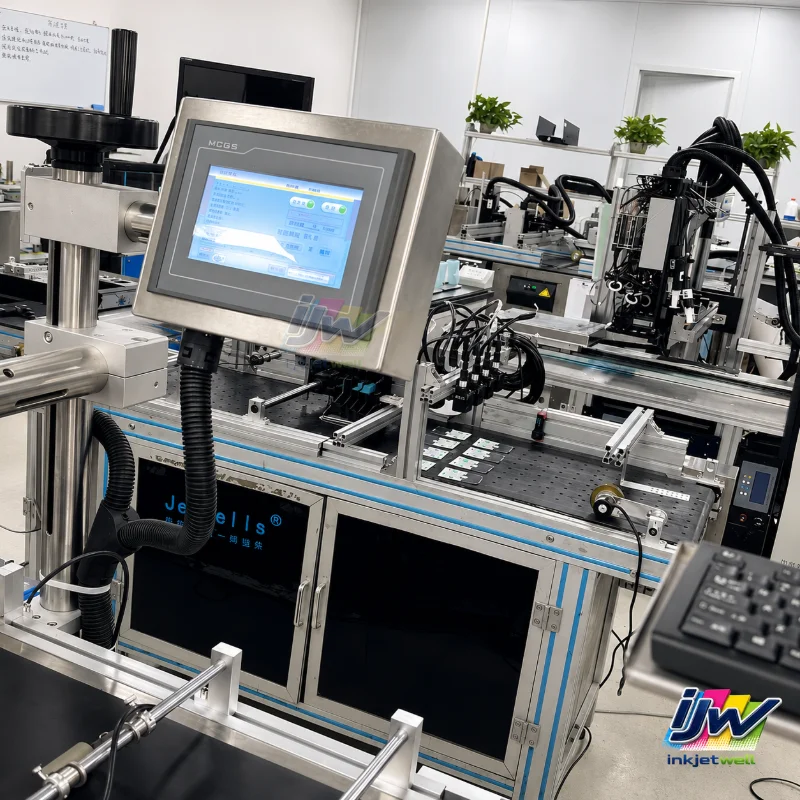

The system can be supplied with a controller, printhead mounts, sensors, encoder, network connection, conveyor interfaces, database software, and external alarms. Mechanical protection and easy cartridge access should be included in the final design.
Specification snapshot
| Item | Draft specification |
|---|---|
| Printing technology | TIJ 2.5 thermal inkjet |
| Printhead count | Configured to order |
| Print area | Based on head count and arrangement |
| Resolution | Based on selected printhead and controller |
| Codes | Barcode, QR, DataMatrix, text, numbers, graphics |
| Data source | Local, serial, network, or database |
| Synchronization | Product sensor and encoder |
| Installation | Conveyor, packaging machine, or multi-lane line |
| Final specification | Confirm by project |
Why choose this solution
Choose a multi-head TIJ system when the customer needs more print coverage or more print zones but still wants the simple cartridge replacement and low routine maintenance of TIJ technology.
Call to action
Send us the number of lanes, print position, print height, material, speed, and data layout. Inkjetwell will define the number and arrangement of printheads.
