Product introduction
Short description
The OEM TIJ integration module is designed for partners that need to add industrial coding to packaging machines, conveyors, inspection systems, or automated production equipment. It combines a TIJ print engine with communication, sensor, encoder, and control interfaces.
Product overview
Packaging-machine builders and automation integrators often need a coding module rather than a complete standalone printer. This OEM configuration can be installed inside a larger machine and controlled through an agreed production interface.

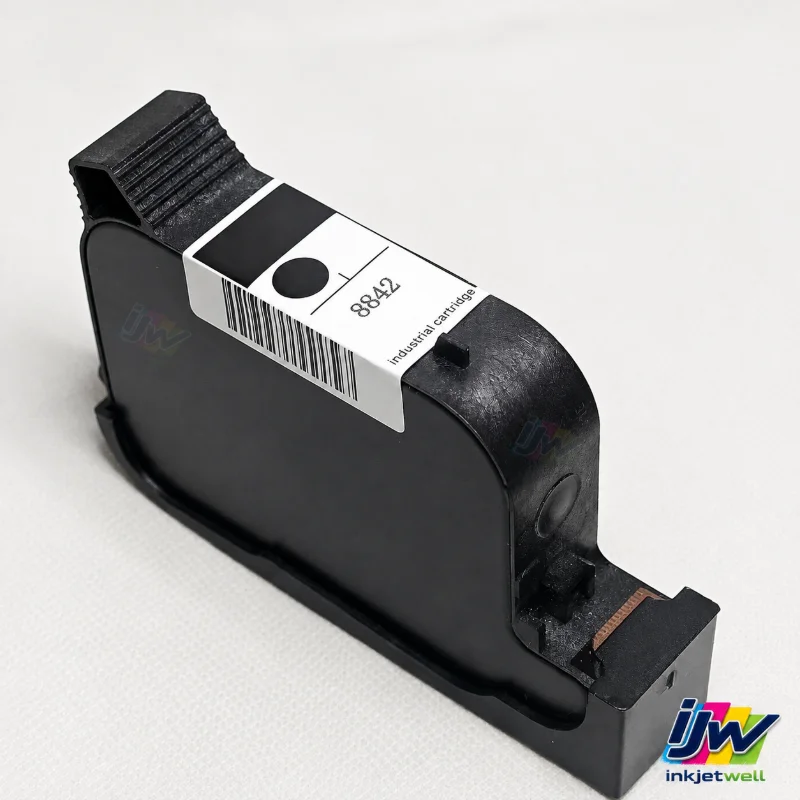

It can print text, dates, batch numbers, serial numbers, barcodes, QR codes, DataMatrix codes, graphics, and database data. The final supply package can include the controller, printhead, mount, sensor, encoder input, communication interface, alarm output, and recommended ink cartridge.
Inkjetwell can support private-label, project integration, application testing, commissioning, and technical training for qualified distributors and OEM partners.
Key features
- Compact TIJ print engine for machine integration
- Single-, dual-, or project-based printhead options
- Text, dates, barcodes, QR codes, DataMatrix, and graphics
- Variable and database printing
- Product sensor and encoder inputs
- USB, network, and RS232 communication based on configuration
- Alarm and machine-control interface options
- RFID cartridge recognition on supported configurations
- Mechanical mounting and head-protection options
- Application testing and integration support
- OEM and distributor project support
Typical print content

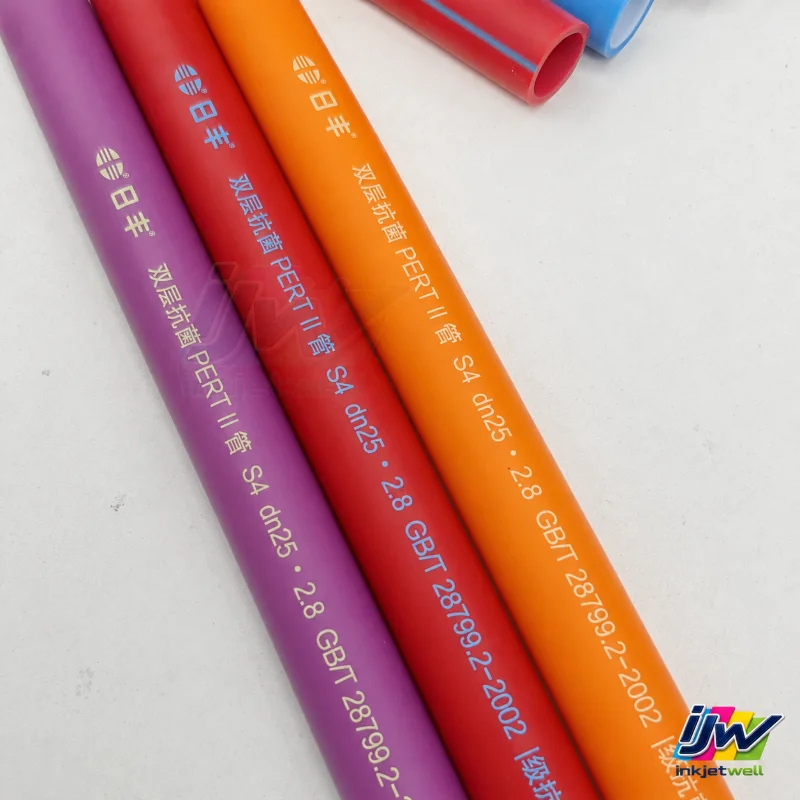

- Date, batch, and lot codes

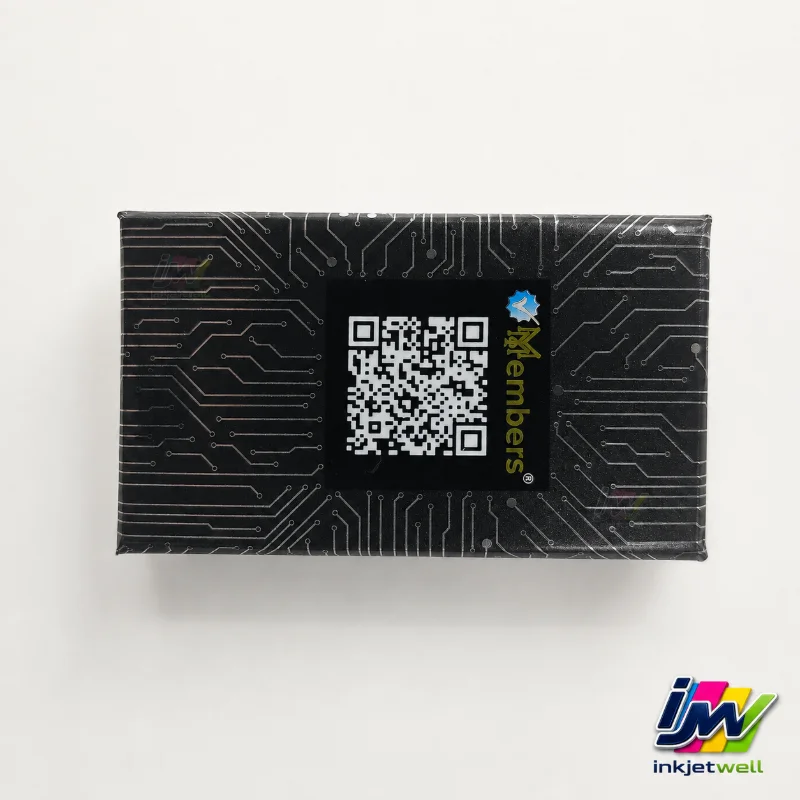

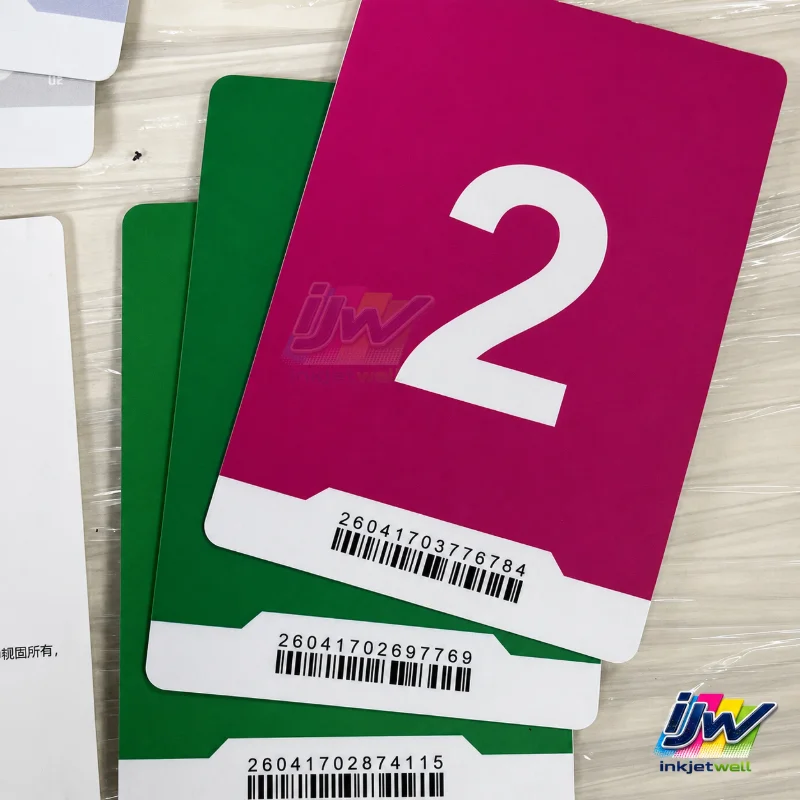

- Barcodes and QR codes
- DataMatrix codes
- Serial numbers
- Product and logistics information
- Database-controlled variable data
Suitable applications
- Cartoning machines
- Labeling machines
- Pouch and bag packaging equipment
- Conveyors
- Inspection systems
- Pharmaceutical packaging machines
- Food and beverage equipment
- Custom industrial automation
Ink and material selection
The OEM partner must provide the actual substrate, speed, print distance, installation space, and environmental conditions. Inkjetwell will recommend a cartridge and mounting arrangement for the application.
Integration and automation
Integration can include start-print signals, product sensors, encoder inputs, data transfer, alarm output, production-order data, database communication, and machine-interface logic. Final interface details must be agreed during project engineering.
Specification snapshot
| Item | Draft specification |
|---|---|
| Printing technology | TIJ 2.5 thermal inkjet |
| Printhead configuration | Single, dual, or custom |
| Print content | Text, numbers, codes, graphics, variable data |
| Communication | USB, network, RS232, and project interfaces |
| Production inputs | Product sensor and encoder |
| Outputs | Alarm and project control options |
| Mechanical supply | Mounting and head protection available |
| Partner support | Testing, training, commissioning, OEM support |
| Final specification | Confirm by host machine and application |
Why choose this solution
Choose the OEM TIJ module when coding must become part of a packaging or automation machine rather than a separate add-on. It allows the machine builder to offer a more complete production solution.
Call to action
Provide the host-machine drawing, available installation space, line speed, communication requirement, substrate, and print layout. Inkjetwell will prepare an integration proposal.
